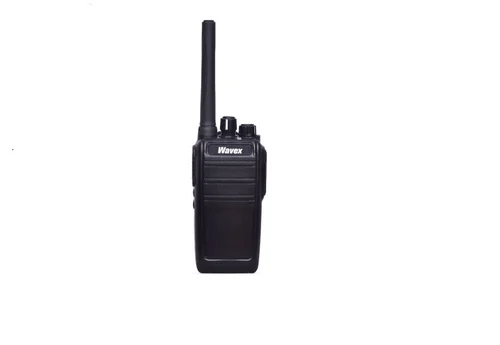

WAVEX PT 100 WALKIE TALKIE
Description
Description
- CTCSS/CDCSS and STE
- Busy channel lockout (BCL)
- Monitor
- Channel scan
- Selectable squelch level 0-9
- VOX (this function can be active only when you plug in a headset).
- Time out timer (TOT)
- Channel voice prompt
- Wide/Narrow band switch
Technical Specification
|
General |
|
|
Frequency Range |
446-446.2 Mhz |
|
Channels |
16 |
|
Channel Spacing |
25 kHz/12.5 kHz |
|
Working Temperature |
-20°C~+60°C |
|
Antenna Impedance |
50 Ω |
|
Operating Voltage |
DC 3.7V (±20%) |
|
Battery Capacity |
4800 mAh |
|
Frequency Stability |
$±2.5 ppm |
|
Dimension |
56 x 34 107 mm |
|
Weight |
195 g |
|
Transmitting |
|
|
Output Power |
≤5W |
|
Modulation |
11К Ф F3E/16K Ф FЗЕ |
|
Rated Audio Distortion |
≤5% |
|
Adjacent Power |
≥60dB |
|
Modulation Limitation |
≤+2.5Khz/±5.0 Khz |
|
Receiving |
|
|
Sensitivity |
≤-123dB (12dB SINAD) |
|
Adjacent selectivity |
≥60dB(wide)/55dB (narrow) |
|
Intermodulation Rejection Ratio |
≥60dB(wide)/ 55dB (narrow) |
|
Spurious Suppression |
≥60dB(wide)/ 55dB (narrow) |
|
Rated Audio Output Power |
0.5W |
|
Rated Audio Distortion |
≤5% |
