When working at heights, it is important to use ropes that meet the prescribed standards and thus the strictest safety requirements. This rope meets them and is therefore designed especially for working at heights and securing people over an open drop.
The strength of the rope increases with increasing diameter.
The rope is produced in diameters of 9 mm, 10 mm, 10.5 mm, 11 mm, 12 mm and 13 mm.
When working at heights, it is important to use ropes that meet the prescribed standards and thus the strictest safety requirements. This rope meets them and is therefore designed especially for working at heights and securing people over an open drop.
The strength of the rope increases with increasing diameter.
The rope is produced in diameters of 9 mm, 10 mm, 10.5 mm, 11 mm, 12 mm and 13 mm.
Packaging
- coils: 30, 40, 45, 50, 60, 70, 80 m
- spools: 100, 200 m
- other lengths and packaging by agreement

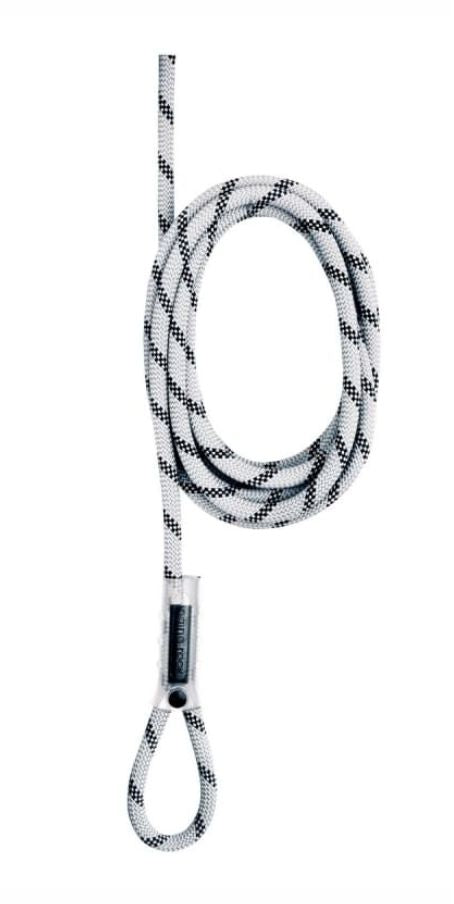

A sewn ending is available up on request.
EN 1891, CE 1019
|
Rope diameter [mm]
|
9
|
10
|
10.5
|
11
|
12
|
13
|
|
Weight [g/m]
|
50
|
69
|
72
|
80
|
92
|
109
|
|
Number of UIAA falls
|
15
|
20
|
20
|
20
|
20
|
20
|
|
Relative weight of the braid [%]
|
49
|
38
|
36
|
39
|
35
|
46
|
|
Sheath slippage [%]
|
0.4
|
0.1
|
0.1
|
0.3
|
4
|
0
|
|
Elongation (50-150 kg) [%]
|
5
|
4.1
|
3.6
|
3.7
|
3.2
|
3
|
|
Shrinkage [%]
|
0.6
|
2
|
1.9
|
1.9
|
1.8
|
1.1
|
|
Strength [kN]
|
23
|
31
|
32
|
33
|
42
|
42
|
|
Min. strength with knots [kN]
|
13
|
17
|
18
|
20
|
25
|
27
|
| Material used |
PA |
PA |
PA |
PA |
PA |
PA |
|
Type
|
Group B
|
A
|
A
|
A
|
A
|
A
|
